LED Light Tester 0-320V Output - Universal Lamp & TV Backlight Repair Tool for Home, Workshop & Professional Use

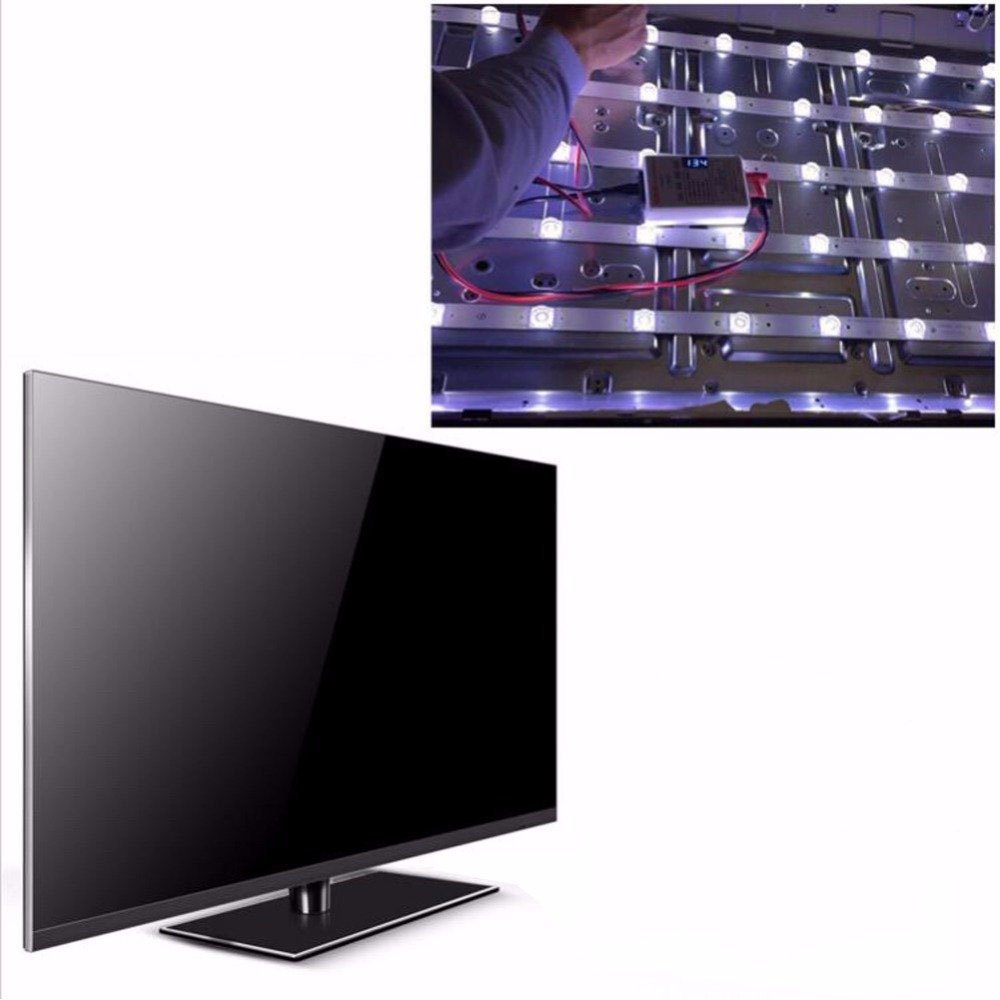

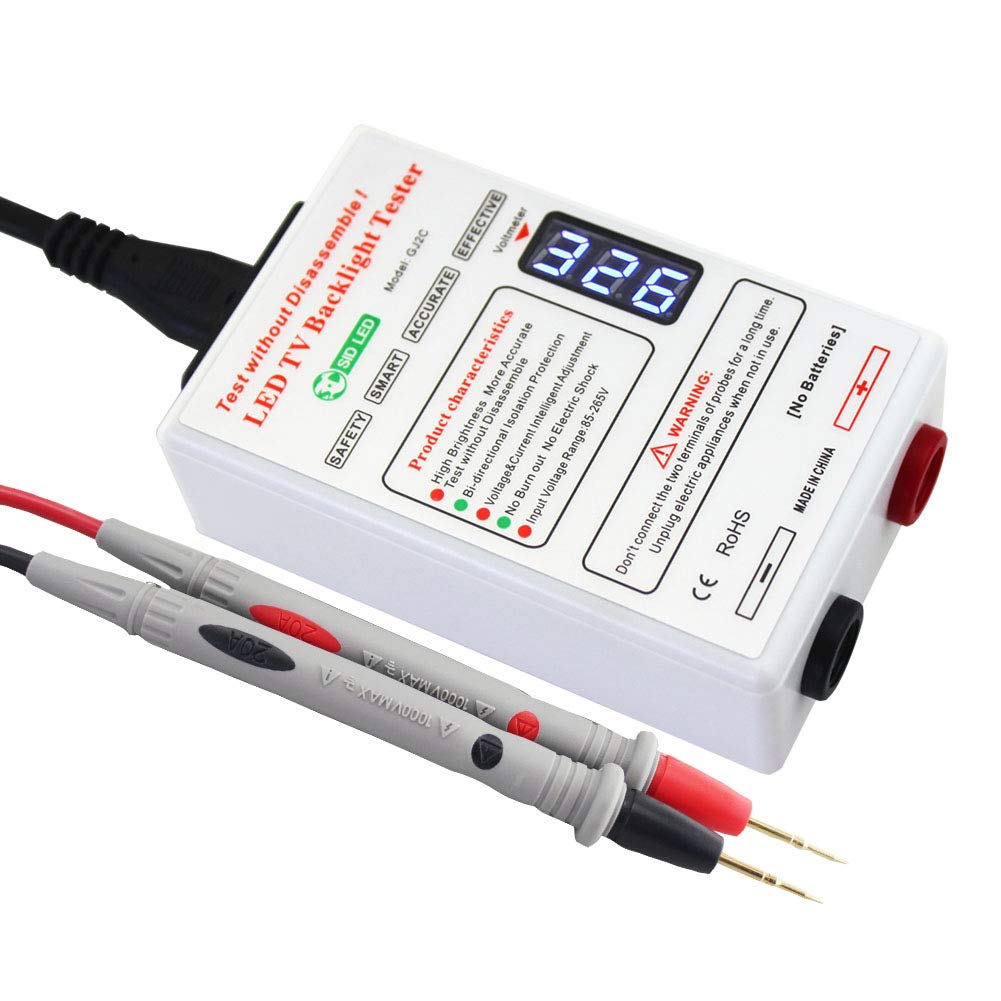

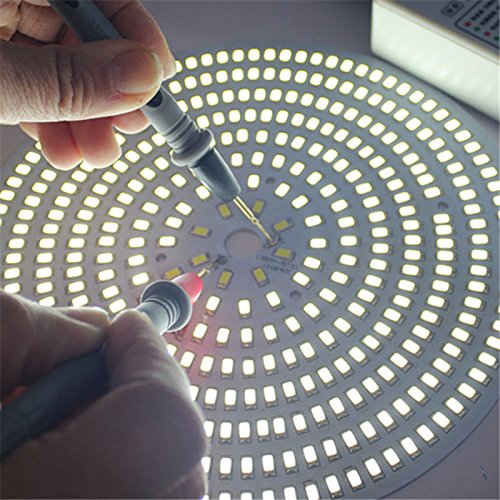

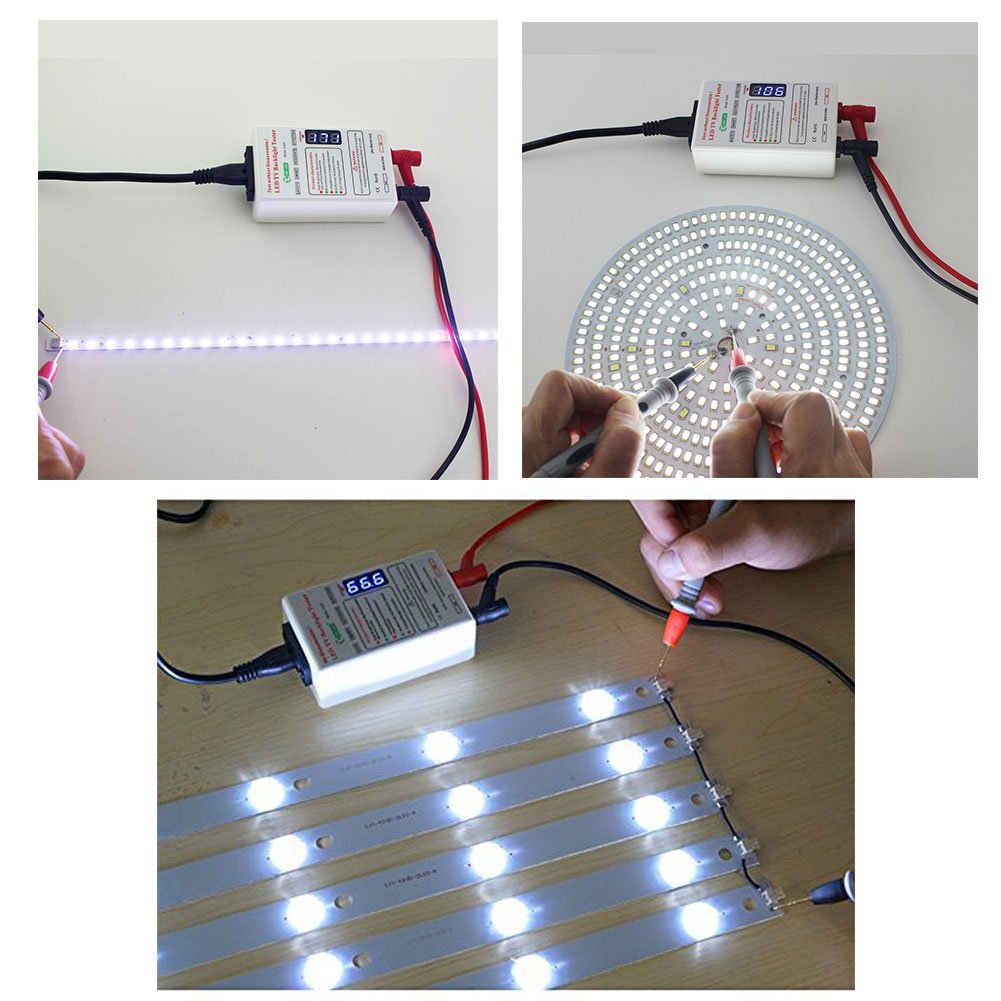

Model: GJ2C Input Voltage:AC 85-265V (International General) Output Voltage: DC 0-320V Output Current:30mA Voltage Range:0-320V (Adopt soft start mode, the voltage slowly increases.About 4% of the reasonable error!) Main Application: - Testing the LED TV backlight without disassemble.Applicable to any size LED TV backlight repairs. Testing of LED stirng, LED panel,COB and integrated LED lights,etc.(DO NOT LOOK DIRECTLY AT THE LIGHT.) Testing of single LED bead.(Don’t connect the probes to the LED for a long time if you can’t determine the “+”and “-”.) - Test voltage parameters for DC power(<300V). - According to the voltage to determine open-circuit,short circuit and the number of the light beads in series. - Check for electric leakage. Product characteristics: - High Brightness.No Disassemble.More Accurate. - Double Isolated Safe Protection. - Voltage and Current Intelligent Adjustment. ATTENTIONS: 1. Please disconnect the power of the detected object first.(If you use to test TV backlight,you should make sure the LCD screen is powered on.) 2. Plug in power,it can be used after 5 to 10 seconds to reach 320V.The soft start mode make the backlight getting brighter slowly. 3. Don’t connect the probes to the LED for a long time if you can’t determine the “+”and “-”. 4. Don’t touch the output terminal of probes for a long time .It’s safe for touch the probes in short time periods.Matters need attention:It's suitable for testing TV backlight without disassembly.With high brightness,you can judge the TV backlight is well or not without disassembling the screen.It has no size limited.
