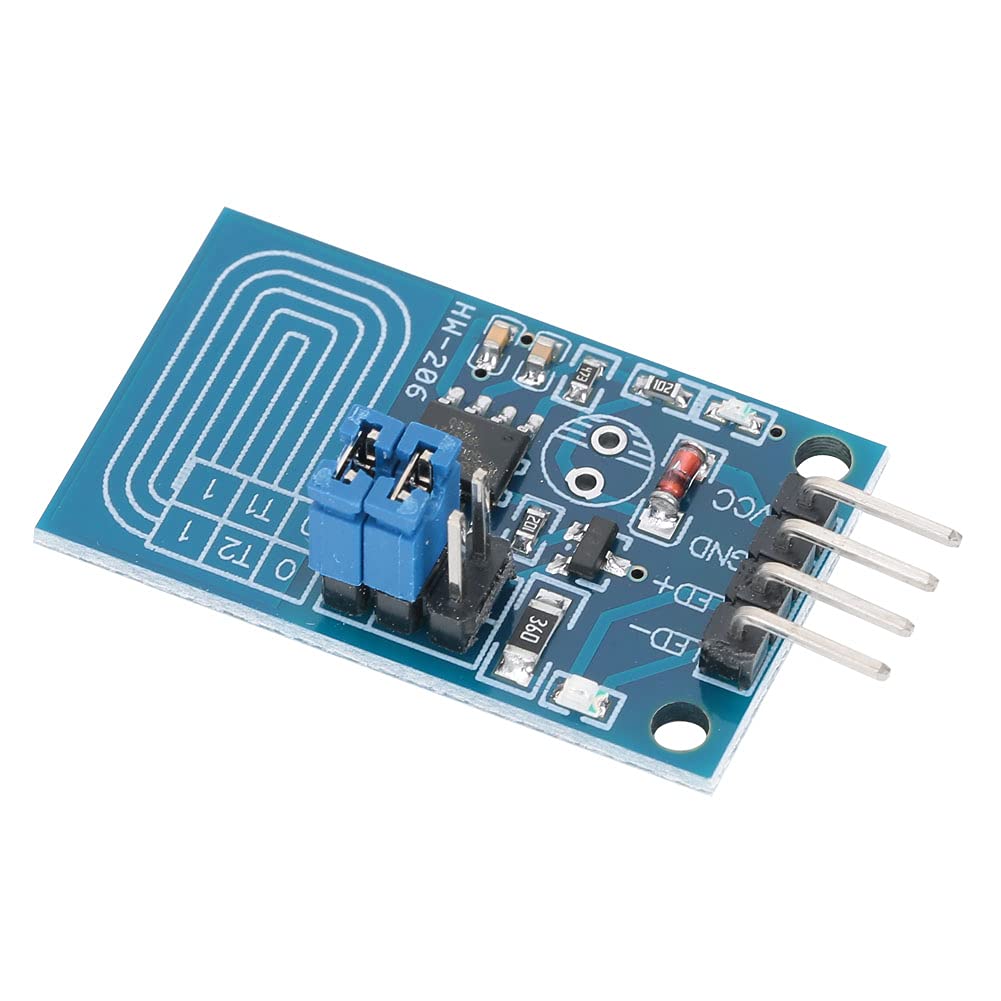

5pcs PWM LED Dimmer Switch Module - Capacitive Touch Control Board 2.4-5V for Light Strips, Table Lamps & LED Lighting | Perfect for Home, Office & DIY Lighting Projects

Feature:1. The brightness can be adjusted as needed. Wide selection range, simple and convenient operation.2. The touch function can be realized under the isolation protection of medium (such as glass, acrylic, plastic, ceramics, etc.).3. Simple application circuit, few peripheral components, convenient to process.4. Resistance to power interference and mobile phone interference characteristics are good. Touch sensitivity and reliability are not affected in close-range and multi-angle mobile phone interference.5. Installation: No need to directly contact with copper foil, dim through acrylic glass or plastic of 3mm or more.Specification:Item Type: Capacitive Touch LED DimmerVoltage: 2.4-5VMaximum Output Current: 500MAPCB Size: 33x20mm / 1.3x0.79inPitch: 16mm / 0.63inHole Diameter: 2.5mm / 0.1inInstructions:a) Short Touch (touch duration is less than 550ms) Can achieve the ON/OFF control of the light. The initial brightness of the light is fixed at 90% of full brightness.b) Long Touch (touch duration is greater than 550ms) Can achieve stepless brightness adjustment of the light. When touch for long time, the brightness of the light gradually increases. If touch time exceeds 3 seconds, the brightness of the light does not change after reaching the maximum brightness. When touch again for long time, the brightness of the light gradually decreases. If touch time exceeds 3 seconds, the brightness of the light does not change after reaching minimum the brightness. .w-e-text table td,.w-e-text table th,;.w-e-text table,Package List:5 x Capacitive Touch LED Dimmer
