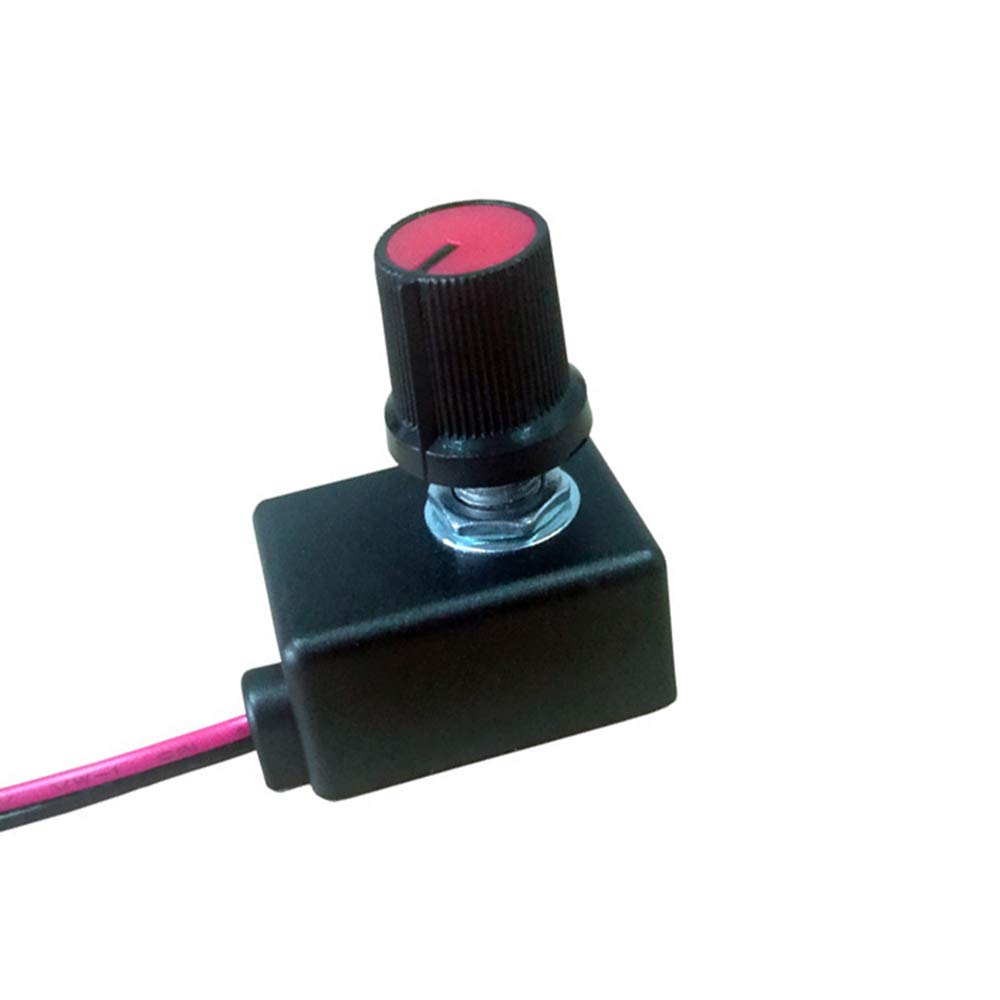

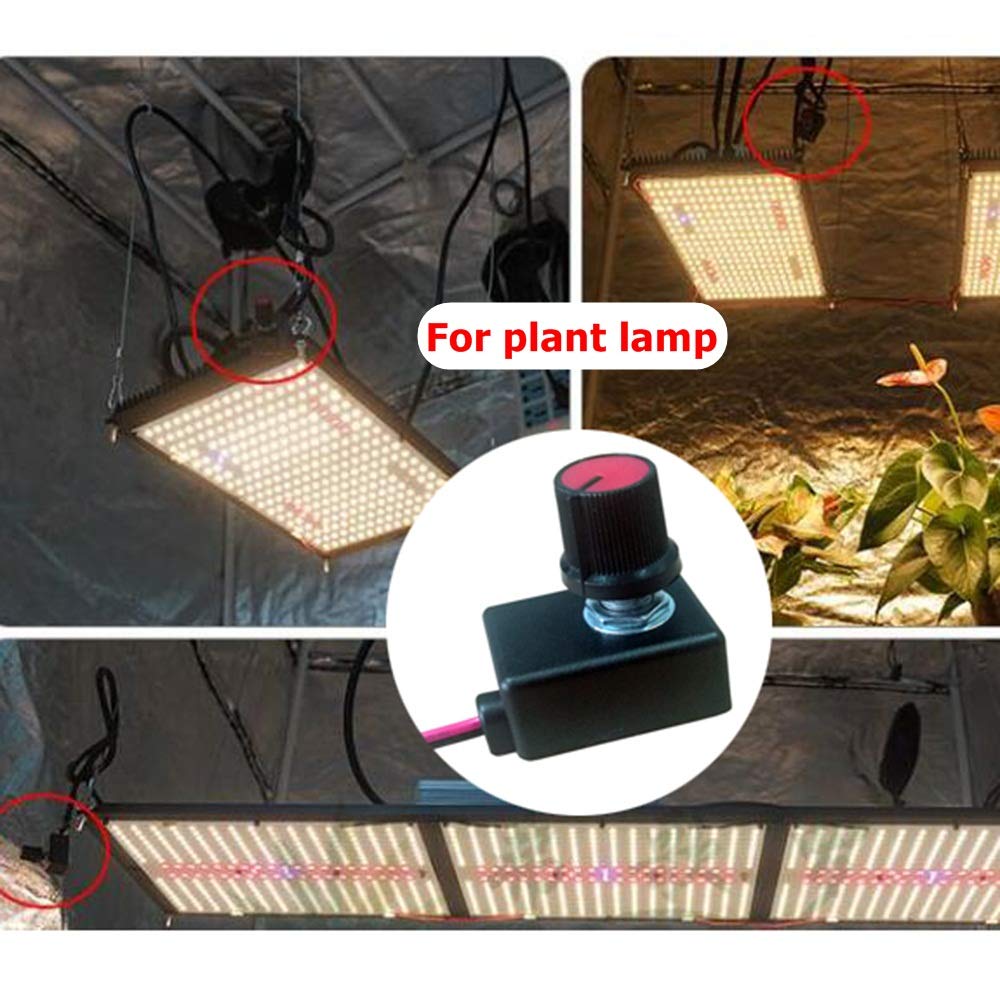

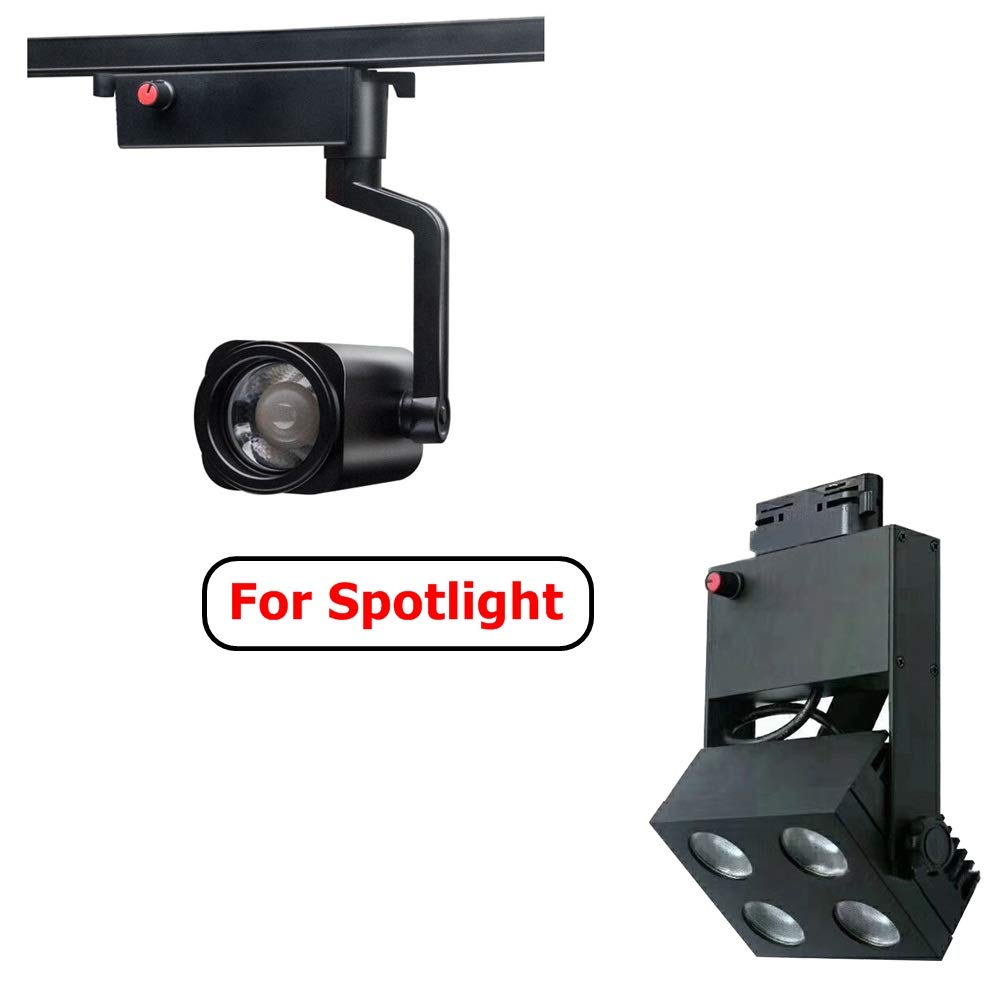

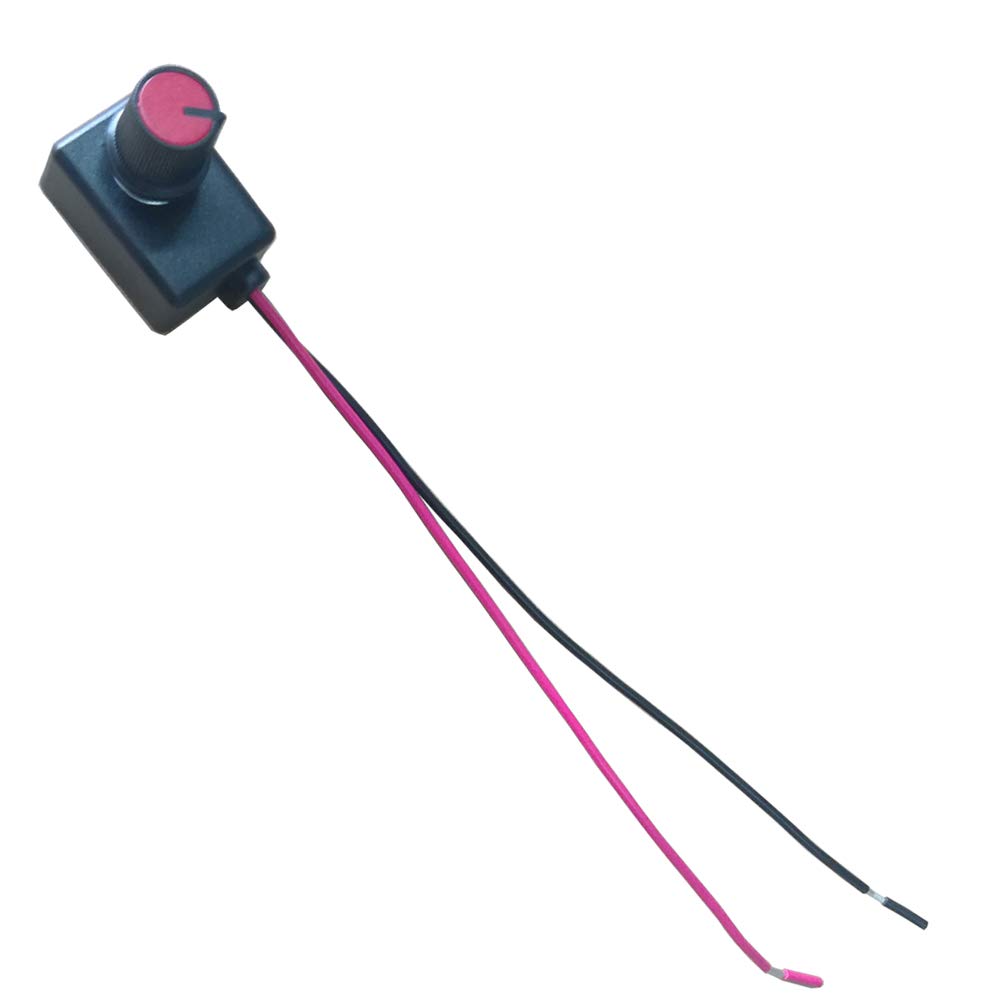

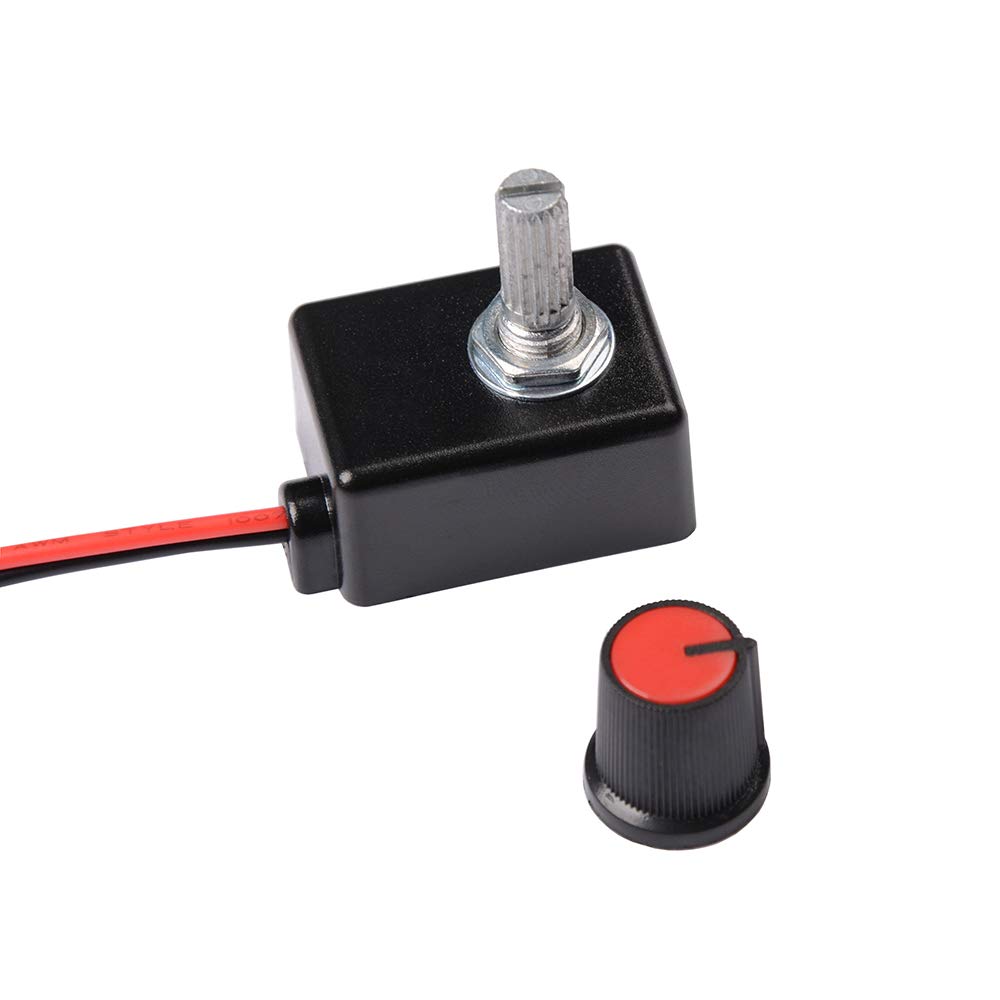

0-10V LED Dimmer Knob Controller - PWM Rotary Dimmer Switch for Dimmable LED Lights, Spotlights & Grow Lamps - Perfect for Home, Office & Indoor Gardening Lighting Control
Free shipping on all orders over $50
7-15 days international
13 people viewing this product right now!
30-day free returns
Secure checkout
96230704
Description
Package include 1 piece of switch Specification : Input Voltage(Max.):10V DC Input Voltage(Min.):0.5V DC Output Control Current(Max.): 40mA Working Temperature:-10℃-40℃ ambient operating at full load Working humidity: 20%-90% RH non-condensing Storage temperature, humidity: -20℃-80℃, 10%-90% RH Dimension: 32*20*35.5mm
Features

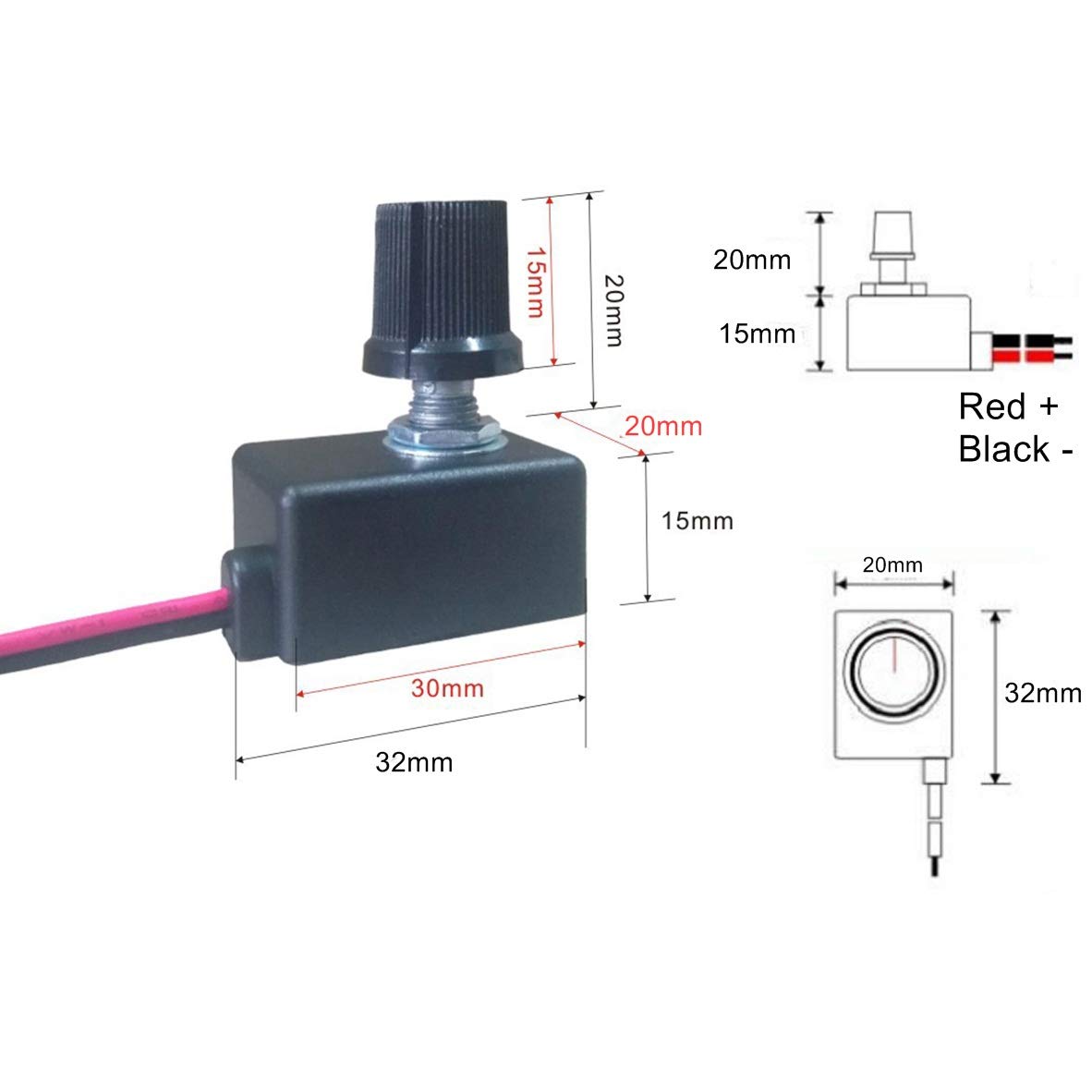

The dimmer is small and easy to install,Switch Size 32*20*35（mm）,Mounting Hole Diameter φ7mm.
The connected power 0/1-10V interface must have a voltage of 10V for dimming;Adjustment range 1-100% ;The max load connected to the drive is 10V/40mA;Minimum output connect cable size is 1007#20AWG;Maximum output cable length 50M
Designed for 0-10V regulating and compatible all 0/1-10V interface dimmable electronic LED Driver & ballasts & transformers and power dimmers .
Place the driver away from direct heat sources and in well-aired spaces .If the driver is built-in ,sufficient ventilation must be ensured.

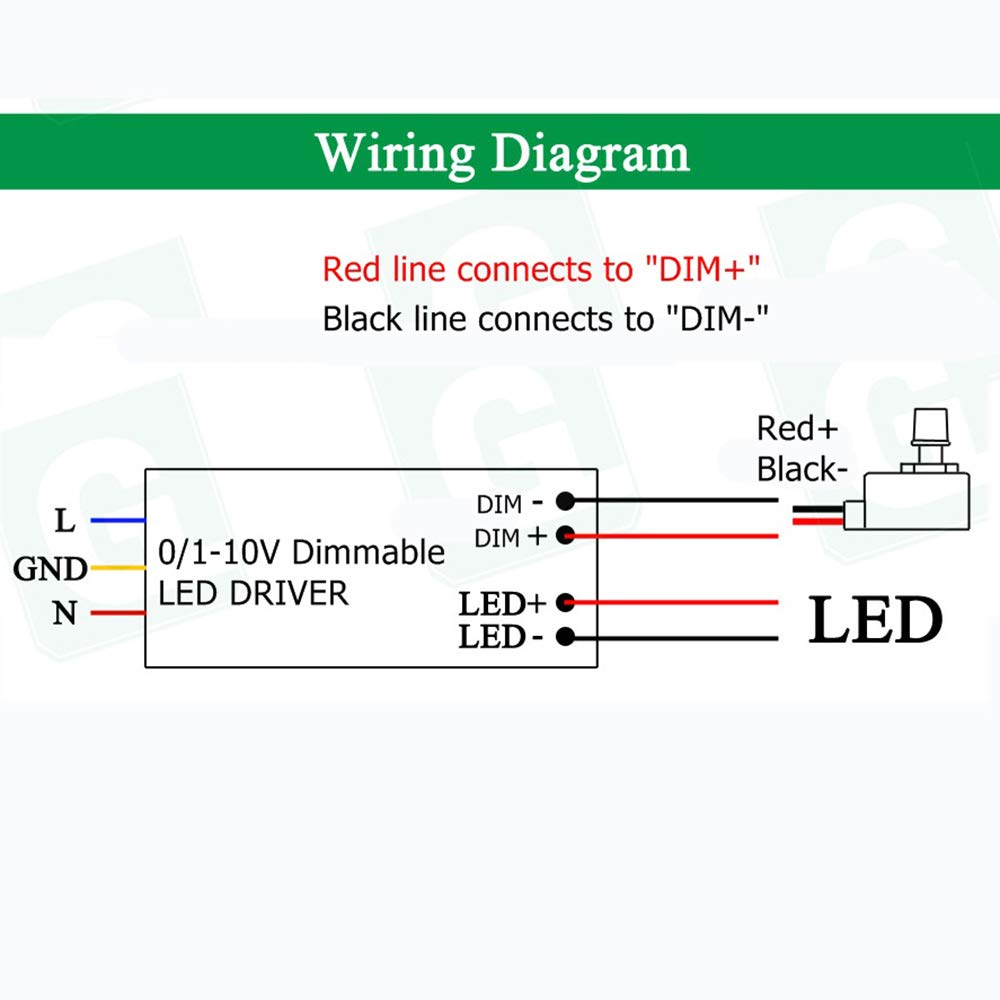

When connecting the electronis LED Driver & ballasts & transformers and power dimmers ,careful attention should be paid to connecting "+" and "-" as the picture of Wiring Diagram .(Red line connects to "DIM+" ,Black line connects to "DIM-" )
